19” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box

TIANJIN ESTEL ELECTRONIC SCIENCE AND TECHNOLOGY CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

19” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box

Brand Name : ESTEL

Model Number : ET156100195

Certification : ISO9001

Place of Origin : China

MOQ : 1 Set

Price : Depends on order quantity

Payment Terms : L/C, T/T, Paypal

Supply Ability : 1500 sets per month

Delivery Time : 20 -30 days

Packaging Details : Wooden case + Pallet

Protection : Waterproof, dustproof, sunproof

Layout : 2 compartments

Size : W×D×H 1560×1000×1950mm

Material : Galvanized steel, double wall with heat insulation

IP Level : IP55

Color  : Outdoor anti-corrosion powder coating RAL7035

Cooling : Air conditioner

Door : 2 front doors and 2 back doors

Contact Now

Two Compartment Weatherproof Outdoor Enclosure Outdoor Beautification Cabinet IP55 With Air Conditioner

1. Specifications:

(1)Technical Parameters

Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 1560×1000×1950mm
Layout 2 compartment
Equipment Installation Method 19” rack, tray, battery shelf
Door With two front doors and two rear doors, and anti-theft for outdoor cabinet (support padlock)
Material Galvanized steel, double wall with heat insulation
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner
Lighting LED lamp AC220V LED lamp and LED lamp switch
Temperature Temperature Working Temperature: -40°C ~ +75°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2

(2)Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: W×D×H 1560×1000×1950mm

(2) Layout: 2 compartments

(3) With two front doors and two back door, and anti-theft three point lock for outdoor cabinet (support padlock).

(4) Material: galvanized steel, double wall with heat insulation

(5) IP55

3 Air Conditioner 2 Set AC220V 50Hz 1500W air conditioner
4 LED Lamp Switch 4 PC Used for controlling LED lamp on/off
5 LED Lamp 4 PC AC220V
6 Package 1 Set Wooden Case with pallet

2. Applications

Provides a secure, climate controlled environment for any electronic equipment.

Telecommunications

Wireless/Broadband

Fiber Optics

Backhaul

Base Station

Small Cell/DAS

Utility

Military

Trailer-based Communications

Wi-Fi

Flexible and Scalable

3. Feature

(1) High compatibility, high integration, good appearance

(2) Energy saving and high efficiency cooling system

(3) Flexible structure

(4) Fast deployed

(5) Theft - proof, inside installation, inside fixing, no outer screws; anti-theft three point lock; Inside door hinges, multiple protection; embedded cabinet door

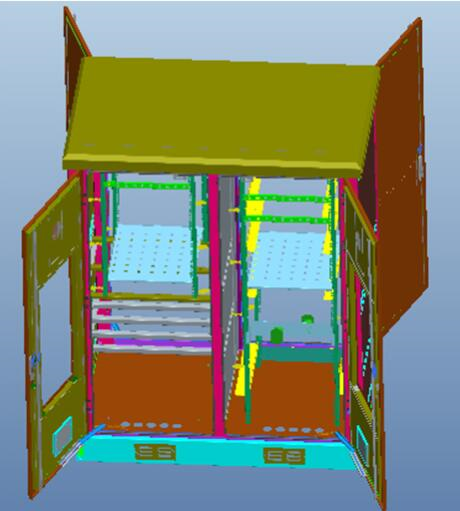

4. Cabinet Diagram

19” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box19” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box

5. Factory

19” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box

6. Qualification

19” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box
