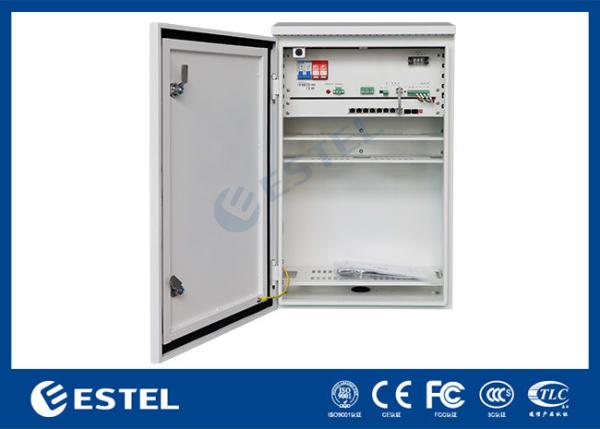

IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface

  • 1
  • 2
  • 3

Brand Name : ESTEL

Model Number : ENSP0603

Certification : ISO9001, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1

Price : negotiation

Payment Terms : T/T, Western Union, Paypal, etc

Supply Ability : 8,000 sets per month

Delivery Time : 10 -15working days

Packaging Details : wooden case

Material : Galvanized steel,double wall with thermal insulation

Alarm input : 3 channels, dry-connector input

Protection Level : IP55

Proof : dustproof, sunproof and rainproof

Color : White

Alarm output : 1 channel, dry-connector output

External Size : 700mm×420mm×250mm(H×W×D)

Interface : RS485/232

Contact Now

IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface

3 Channels DC 12V Output Support RS485 Interface IP55 Smart Surveillance Box Overview

The smart surveillance box can be connected with network switch, IP camera, flash lamp, alarm lamp, infrared detector or other equipment. It can managed all connected equipment and with rich management function. Work with the platform software, It can send alarm message when input AC power off, device power off, optical fiber link down, IP camera link down

3 Channels DC 12V Output Support RS485 Interface IP55 Smart Surveillance Box Feature

  1. Provide 1 channel AC power input.
  2. provide 3 channel DC 12V, can remote control and detect output of voltage and current.
  3. With 8*10/100/1000M PoE downlink ports and 2*10/100/1000M SFP uplink ports.
  4. Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
  5. The box body adopts waterproof(protection level IP55), anti-rust treatment, suitable for long outdoor use;
  6. Supports platform software, supports maps, multi product networking, remote control, alarm management, operational dimension, statistical analysis, etc.

3 Channels DC 12V Output Support RS485 Interface IP55 Smart Surveillance Box Specification

Item

Specification
AC power IN AC 100~240V, 50/60Hz, 10A
DC12V output

DC12V output 3 channels, 3A, green terminal slot;

Support for remote control of single channel;

Support shows the single circuit voltage and the current value;
Network switch

1~8 ports: 10/100/1000Base-T 30W PoE RJ45(IEEE802.3af/at)

9~10 ports: 1000Base-X SFP

Working mode:

Default mode: normal switch mode.

VLAN mode: ports 1 ~ 8 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control.
RS485 Standard RS485 interface
RS232 Standard RS232 interface
10/100 Network port 1*10/100 Base-TX
Alarm input

3 channels, dry-connector input

channel 1 is default for the door open/closed detected;
Alarm output 1 channel, dry-connector output
Booster 12V to 48V, can adjust voltage
Operating temperature -20℃~70℃
Storage temperature -40℃~85℃
Humidity 0~95%(no condensation)
Size(H×W×D) 700mm×420mm×250mm
Material metal
Colour white
Net weight 20kg
Diagram
IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface
IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface
Product details
IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface
